Humimeter BL2 - Universal Biomass Water Content Moisture Meter



Price: $835.99
Price: $1,170.39


Description

The BL2 Humimeter measures the moisture of various kinds of wood and wood chips within seconds. It is ideal for measuring round timber, split logs, wood chips, sawdust, wooden pellets. The insertion probe for wood chips and the ram electrode for round timber/split logs must be ordered separately. Only the exact measurement of water content with the BL2 Humimeter can determine the fuel value and allow fair payment for producers, suppliers and end customers. By using the BL2 moisture meter you can prevent machine problems and avoid paying high product prices for excess water. The measurement results can be stored on the device, printed out on an external printer or sent to a PC if required. As the water content of wood chips, round wood and all energetic materials can vary significantly within one single log or sample lot, the BL2 meter is equipped to automatically calculate the average over 10 single measurements. This is a very quick and efficient method to obtain exact measuring results.

Features and Specifications:

  • Measurement of wood chips, round wood and further materials with one single device
  • Measurement range: depending on the sensor up to 60% water content (depending on the material)
  • Resolution: depending on the sensor
  • Good accuracy, calibration accuracy to reference material: +/- 2.5%
  • Temperature range for determination of water content 0 to + 40°C / 32 to 104°F
  • Temperature measurement range: depends on the sensor
  • Temperature can be set to °C or °F as required
  • Customer's data can be recorded
  • Automatic temperature compensation
  • Hold function, manual saving of results, auto data log for up to 10,000 logs with measuring point report
  • Measurement within seconds
  • High measuring range up to 60% water content (depending on the material)
  • Large, well-lit LC display
  • Quality control and documentation everywhere on site
  • Different measuring probes for measurements up to a depth of 1 meter available
  • Menu languages: English, French, Spanish, German, Italian, Russian, Portuguese, Czech, Polish and many others on request
  • The Insertion Measuring range wood chips 10 - 50 % water content, wooden pellets 11- 20% water content, sawdust 14 - 50% W.C.
  • Order includes: Humimeter BL2 with rubber protection cover, and batteries (order probes separate)

Required Accessories

Part #: HM-12520
$357.80 (USD)
$500.92 (CAD)
BL2 hammer (ram electrode) with 2 meter cable, for determination of water content of round timber an (more...)

Set of tips for measuring hay and straw bales, for mounting at BL2 hammer article HM-12520

Part #: HM-12518
$481.41 (USD)
$673.97 (CAD)

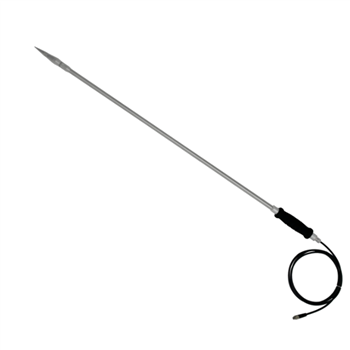

Insertion probe for wood chips, 1 meter length, with exchangeable measuring head, for determination (more...)

Optional Accessories

humimeter USB data interface module with LogMemorizer measuring data recording and analyzing softwar (more...)

Part #: HM-14433
$487.91 (USD)
$683.07 (CAD)
Thermo printer runs by battery, industrial model, portable (only with HM-12278)

Part #: HM-12308
$119.70 (USD)
$167.58 (CAD)
Test block for Humimeter FL1, FL2, FLH, BLL, BL2, WLW, BLW, SLW, RM1 and BLO

Part #: HM-12472
$253.71 (USD)
$355.19 (CAD)
Replacement tip (measuring head) for humimeter BLL and BL2

Extension piece for insertion probe of Humimeter BLL and BL2, mountable

Part #: HM-11929
$84.57 (USD)
$118.40 (CAD)
This optional Plastic case can be used for any model of the: BLW, WLW, BL2 and GF2 humimeter series.

Part #: HM-12540
$208.18 (USD)
$291.45 (CAD)
Wooden case for humimeter BL2
