RTD PT1000 5” T-Handle Wireless Gen 2 Industrial High Temperature Sensor Probe


  • Part #:RFT-229-5A
  • Weight:1.00
  • Availability: Inquire

Price: $576.92
Price: $790.38


Description

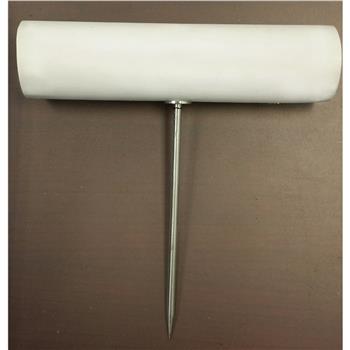

Scigiene’s Gen 2 High Temperature 5" T-Probe wireless sensors are constructed of Teflon and St. Steel to provide durability in extreme environments of up to 100+°C and are IP68 and withstand conditions that would result in most plastics becoming brittle. These are designed specifically although not limited to smoke house and cook houses. The T shaped design allows for easy insertion and removal of the pointed probe without bending of the probe and eliminates damaged cables (since there are none), while the T-handle makes its use ergonomic and when inserted it sits flush to the product being tested making it easier to secure via simple strapping and less likely to be knocked out (as occurs with most standard body heavy cylindrical dataloggers).  These can be supplied with a range of standard or custom built probes. The GEN2 models also have internal memories so that even in the worst wireless conditions data is logged and downloaded once RF connection is re-established.

The T-probes are high powered 900MHz wireless temperature sensors (PT1000 RTD) to accurately measure internal product temperatures. User customization allows you to set the frequency of readings and the ability to set thresholds for alerts via SMS text and/or email or to activate control relays. These can be used in concert with the rest of our Industrial series sensor to implement a plant wide monitoring system for all production areas, cooler and freezers as well as use with over 50 different senor types.

Features & Specifications:

  • 350 - 500 ft. non-line-of-sight device range*
  • 5" PT1000 RTD Probe
  • Probe Range: -50°C to +370°C (-58°F to +700°F)
  • Accuracy: +/-0.3° at 0°C
  • User defined thresholds for alerts and notifications
  • Enclosure: Teflon and St. Steel IP68
  • Sensor (Body) Max Operating Temperature: -40° to 140°C
  • Dimensions: 4cm x 12cm plus probe
  • Integrated Memory: Up to 512 sensor messages
  • Power: High temperature Lithium Thionyl Chloride AA, 3.6V Battery (factory replaceable only)
  • At 1 minute heartbeat setting, included AA batteries will last >1yr**
  • Security: Encrypt-RF™
  • FCC and IC certified
  • 900MHz Operating Frequency
  • Antenna: 3dBi RP SMA
  • Can be offered with customized mounting pins (call for details)
  • Please call Scigiene for other probe options


Additional Information

* Actual range may vary depending on environment

** Battery life is determined by sensor reporting frequency and other variables

Technical Information

Required Accessories

Part #: RFR-0526-2
$231.00 (USD)
$316.47 (CAD)

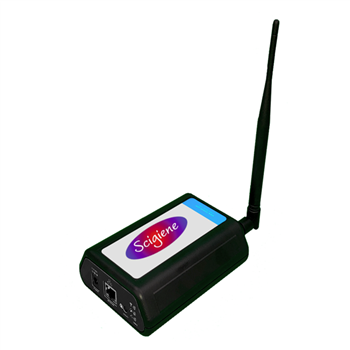

The Gen 2 Ethernet Gateway allows your RF Wireless Sensors to communicate with the Scigiene Premier (more...)

Part #: RFR-0538-2
$404.25 (USD)
$553.82 (CAD)

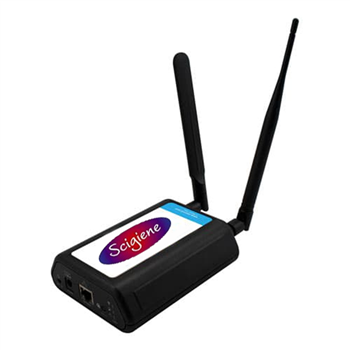

The Scigiene GEN 2 4G Cellular Gateway allows you to control GEN 2 Wireless Sensor settings without (more...)

Part #: RFR-0535
$114.45 (USD)
$156.80 (CAD)

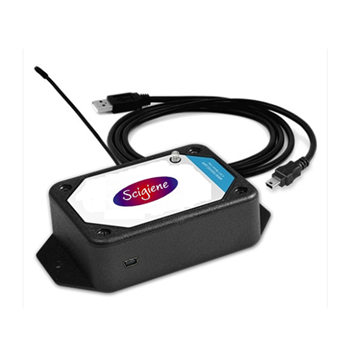

The Gen 2 RF Wireless USB Pro gateway allows your Wireless Sensors to communicate with the Scigiene (more...)

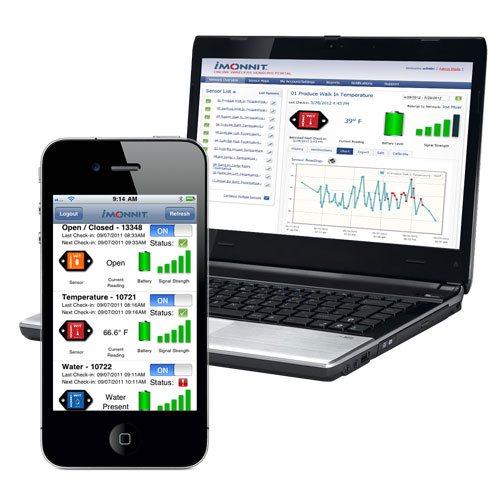

Scigiene 21 CFR Part 11 Premiere is a secure cloud based monitoring and notification software dedica (more...)
