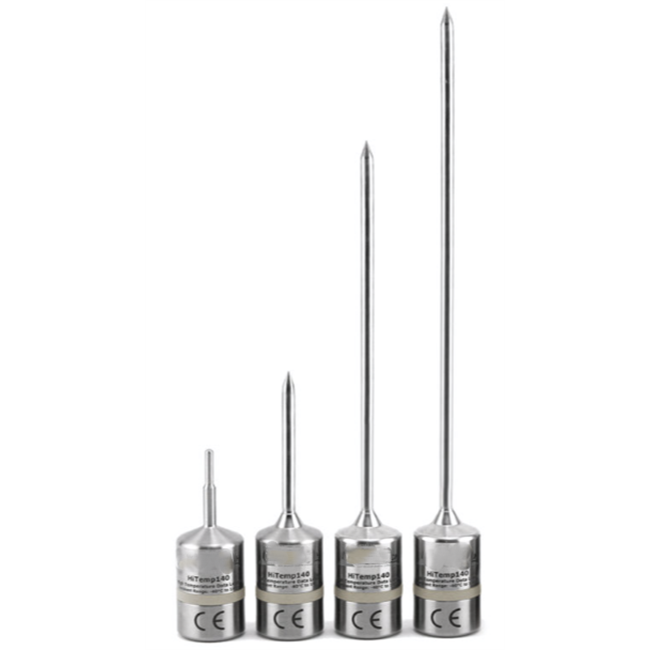

SciTemp140 High Temperature Datalogger


  • Part #:Various - See Below
  • Weight:4.2 oz (120 g)
  • Availability: Inquire

Price: $539.00
Price: $738.43


Description

The SciTemp140 is a rugged, high precision, temperature data logger that is built for use in harsh environments. This stainless-steel device is submersible and can withstand temperatures up to 140 °C (284 °F). With the SciTemp140’s standard calibration, an accuracy of ±0.1 °C (± 0.18 °F) can be achieved over a wide temperature range.

The SciTemp140 can store up to 32,256 readings, and features a rigid external probe capable of measuring extended temperatures, up to 260 °C (500 °F). Custom probe lengths are available up to 7 inches. The device records date and time stamped readings, and has non-volatile solid-state memory which retains data even if the battery becomes discharged.

Using the SciTemp Software, starting, stopping and downloading the SciTemp140 is simple and easy. To use, simply place the SciTemp140 in the SD900319-00 or SD900325-00 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Start the data logger, remove it from the docking station and the device is ready to be deployed. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.

Features:

  • Operates up to 140 °C (284 °F)
  • Rugged
  • Programmable Start Time and Stop Time
  • Engraved Label
  • Probe Lengths up to 7 inches
  • Battery Life Indicator

Specifications:

Temperature Specifications

Temperature Sensor

100 Ω Platinum RTD

Probe Measurement Range

-200 °C to +260 °C (-328 °F to +500 °F) BODY OF LOGGER CANNOT EXCEED 140 °C

Temperature Resolution

0.01 °C (0.02 °F)

Calibrated Accuracy

±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)

±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)

±0.4 °C/±0.72 °F (-40 °C to –20.01 °C/-40 °F to -4.02 °F)

General Specifications

Start Modes

Software programmable immediate start delay start up to 18 months in advance

Stop Modes

Manual or Timed (specific date and time)

Real Time Recording

May be used with PC to monitor and record data in real time

Password Protection

An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password.

Memory

32,256 readings

Trigger Settings

High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers.

Reading in Trigger Settings Mode

6,451 readings

Wrap Around

Yes

Reading Rate

1 reading every second up to 1 reading every 24 hours

Calibration

Digital calibration through software

Calibration Date

Automatically recorded within device

Battery Type

3.6V high-temperature lithium battery included; user replaceable

Battery Life

2 years typical (1 minute reading rate)

Data Format

Date and time stamped °C, K, °F or °R

Time Accuracy

±1 minute/month at 20 °C to 30 °C (68 °F to 86 °F) (Stand-alone mode)

Computer Interface

USB docking station required; 125,000 baud

Operating System Compatibility

Windows XP SP3 or later

Operating Environment

-40 °C to +140 °C (-40 °F to +284 °F)

0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA

IP Rating

IP68

Dimensions (Body)

SciTemp140-1:1.6 in x 0.970 in dia.

SciTemp140-2, 5.25, 7: 1.9 in x 0.970 in dia.

Dimensions (Probe)

SciTemp140-1: 1.1 in x 0.125 in dia. (0.188 in transitional dia.)

SciTemp140-2: 2.0 in x 0.188 in dia.

SciTemp140-2-TD: 2.0 in x 0.125 in dia. (0.188 in transitional dia.)

SciTemp140-5.25: 5.25 in x 0.188 in dia.

SciTemp140-5.25-TD: 5.25 in x 0.125 in dia. (0.188 in transitional dia.)

SciTemp140-7: 7.0 in x 0.188 in dia.

Weight

4.2 oz (120 g)

Material

316 Stainless Steel, PPSU

Approvals

CE

Additional Information

Model Options:

Part #

Description

SD900140-00

SCITEMP140-1 - High Temperature Data Logger with a 1 inch probe

SD900153-00

SCITEMP140-2 - High Temperature Data Logger with a 2 inch probe

SD900165-00

SCITEMP140-2-TD - High Temperature Data Logger with a 2 inch transitional diameter probe

SD900173-00

SCITEMP140-5.25 - High Temperature Data Logger with a 5.25 inch probe

SD900180-00

SCITEMP140-5.25-TD - High Temperature Data Logger with 5.25 inch transitional diameter probe

SD900198-00

SCITEMP140-7 - High Temperature Data Logger with a 7 inch probe

SD900151-00

SCITEMP140-1-KR - High Temperature Data Logger with a 1 inch probe and Keyring End Cap

SD900162-00

SCITEMP140-2-KR - High Temperature Data Logger with a 2 inch probe and Keyring End Cap

SD902099-00

SCITEMP140-2-TD-KR - High Temperature Data Logger with a 2 inch transitional diameter probe and Keyring End Cap

SD902108-00

SCITEMP140-5.25-KR - High Temperature Data Logger with a 5.25 inch probe & Keyring End Cap

SD902088-00

SCITEMP140-5.25-TD-KR - High Temperature Data Logger with a 5.25 inch transitional diameter probe and Keyring End Cap

SD900204-00

SCITEMP140-7-KR - High Temperature Data Logger with a 7 inch probe and Keyring End Cap

Accessories

SD900319-00

Docking station with USB cable

SD900325-00

6 Port, Multiplexer docking station with USB cable

SD900097-00

Replacement battery for the SciTemp140

Required Accessories

Part #: SD900319-00
$120.00 (USD)
$164.40 (CAD)
Interface Cable Package for the HiTemp140 Data Loggers. The IFC interface cable packages allow for t (more...)

Part #: SD900325-00
$549.00 (USD)
$752.13 (CAD)
The Multiplexer Data Logger Interface allows for multiple devices to be connected into one interface (more...)

Optional Accessories

Part #: SD9002XX-00
$99.00 (USD)
$135.63 (CAD)
The SciTemp140-TS is a thermal shield designed for use with the SciTemp140 datalogger. This durable (more...)

Part #: SD900360-00
$41.50 (USD)
$56.86 (CAD)
A magnetic holder for use with the SciTemp140 series data loggers. The device can be placed in envir (more...)

Part #: SD900388-00
$83.00 (USD)
$113.71 (CAD)
A versatile mount or stand for use with the SciTemp140 series of data loggers. It can be used to sta (more...)

Part #: SD900097-00
$67.00 (USD)
$91.79 (CAD)
145 °C 3.6V Lithium Battery, 1/2 AA Pressure Contact.
