LogBox-DA is an electronic
data logger with two input channels, one analog and one digital. Input data is
stored in the logger internal memory, for later download to a PC for
visualization and analysis in the form of tables or graphs. The data is easily
exported to spreadsheets.
The LogChart-II is the software used to configure the logger, download and
visualize data. The logger configuration allows defining the logger operation
mode, including programming the start/stop time of data acquisition. Other
parameters such as signal input type, logging interval, multiplication factor,
scale range, etc., are easily selected through the LogChart-II software.
The LogBox-DA also
provides a signal for commanding an external power supply (battery) of a device
connected to the logger. This feature allows that external devices, such as a
transmitter, be powered only during the measurement sample time, thus extending
the autonomy of these external batteries.
|
Features & Specifications:
- One analog input for 0-20mA, 0-50V or 0-10Vdc
- One Digital input for interval pulse counting (Voltage or Contact)
- Memory: 64K
- Recording rate: From 1 second to 18 days
- Start Options: immediate, programmed time & date or via Palm
- Stop Options: When full, at a certain time, after a certain number of readings or loop around

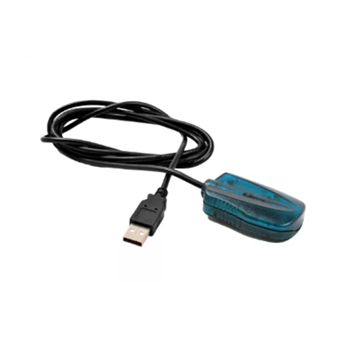

- InfraRed Communication with IR-Link3 up to 1 meter away
- Powered by internal 3.6V lithium battery
- Battery life: up to 2 years depending on data download frequency
- Operating Temperature: -40°C a 70°C
- IP67 enclosure
- Free LogChart II Configurator
|
