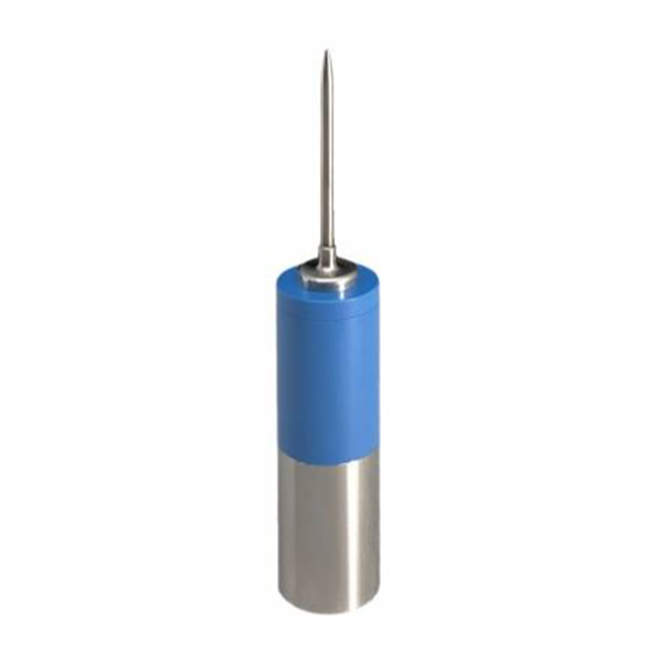

Bluewave T 20 Bluetooth Data Logger


  • Part #:TS22BWT120
  • Weight:74 g
  • Dimensions:70 h X 23 Ø (mm)
  • Units:each
  • Availability: Inquire

Price: $2,226.00
Price: $3,227.70


Description

The BlueWave T Bluetooth data logger has a temperature range of -40°C ÷ +140°C with one channel with rigid probe of different lengths (20/50/100/150 mm and on demand) and 3 mm in diameter. Receive data directly on your laptop (Bluetooth 5.0 required) or on your smartphone without additional accessories. Very easy to use: select the devices you need, start the acquisition, see the data in real time. You will no longer need cables and receivers or cumbersome interfaces and thanks to TS Manager 3 you can immediately analyze data and generate advanced reports. The battery is user replaceable and is supplied with an accredited traceable calibration certificate.



Features:

  • No receiver or accessories needed
  • Live data transmission
  • With different lengths rigid probe for penetration
  • Completely food grade and waterproof
  • All software calculate lethality value (F0, PU, A0 etc.)
  • Low battery consumption for an extended battery life (if used below -20°C the battery life could be significantly reduced)
  • User replaceable battery (software shows battery status)
  • Extremely easy to use
  • Possibility of application to any type of packaging
  • (NIST equivalent) traceable calibration certificate included
  • Available extended calibration from -40°C (order extra calibration points; in case of wide calibration range the accuracy might be worse. Request the possible calibration ranges in advance)
  • Real-time transmission
  • Extreme ease of use
  • Extremely high accuracy and precision: with an accuracy of ± 0.1°C these devices can be employed in any application involving pharmaceuticals, food & beverages, validation, laboratory and medical field
  • High accuracy even outside the calibration range
  • Fast response time thanks to the 3 mm diameter probe
  • Printed reports compliant with health regulations, HACCP and ISO


Specifications:



Dimensions

70 h X 23 Ø (mm)

Probe dimensions

Probe base dimensions 3 h X 14 Ø (mm) - Probe 20/50/100/150/on demand l X 3 Ø (mm) (l on demand: min. 12 mm / max. 175 mm. For longer probes ask for quotation)

Weight

74 g

Materials

Stainless steel AISI316L, PEEK

Temperature range

-40°C ÷ +140°C

Sensor temperature range

-40°C ÷ +140°C

Standard calibration points (temperature)

25/50/75/100/121/140°C

Extra calibration points (temperature)

Within the range -40 °C ÷ +140 °C

Temperature resolution

0.01 °C

Temperature accuracy

± 0.1 °C (within the calibration range)

Memory (n. of acquisitions)

131.000

Acquisition step

From 1 every second up, with 1 second steps

Protection degree

IP68

Battery type

1 x 1/​2AA size 3.6 volt

Battery life

+4.000.000 acquisitions at 1 second step continuously (calculated time @25°C. Battery life may be shorter if used in low temperatures)

Communication

Bluetooth BLE 5.0

Frequency

2.4 GHz

IT Requirements

Windows Laptop Bluetooth 5.0

Real time mode

High Performance (secure reception, greater use of the battery), Normal (possibility of losing some data in real time, less use of the battery), standby (waiting for mission start)

Software

TS Manager 3


Additional Information

Ordering Instructions:


Part Number

Description

TS22BWT120

BLUEWAVE T 20 BLUETOOTH DATA LOGGER

TS22BWT150

BLUEWAVE T 50 BLUETOOTH DATA LOGGER

TS22BWT1100

BLUEWAVE T 100 BLUETOOTH DATA LOGGER

TS22BWT1150

BLUEWAVE T 150 BLUETOOTH DATA LOGGER

TS22BWT1D

BLUEWAVE T ON DEMAND BLUETOOTH DATA LOGGER
