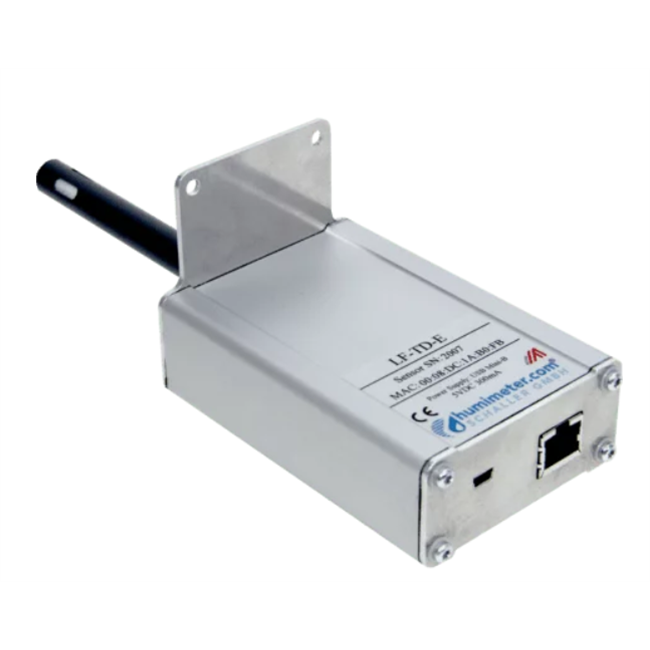

LF-TD-E Air Humidity and Temperature to 60°C Transmitter with Ethernet Interface


  • Part #:HM-13082
  • Dimensions:214 x 76 x 70 mm
  • Availability: Inquire

Price: $442.95
Price: $620.13


Description

The LF-TD-E is a high accuracy relative humidity and temperature transmitter with Ethernet interface up to 60°C, ideal for building management, weather stations, rack monitoring, server rooms, building automation, warehouses, glasshouses, museum/galleries, and air-conditioned rooms.

Features:

In manufacturing processes, storage and transport, the exact determination of moisture and temperature becomes increasingly important. Only accurate moisture monitoring can guarantee high product quality.
The LF-TD-E transmitter, with its robust and easy to mount aluminum housing, is best suited for all applications in this field.

Specifications:

Measuring Range
  • Relative air humidity 0 to 100 %
  • Temperature -20°C to +60°C
Output
  • Digital Output RJ45 (Ethernet)
Accuracy Factory Calibration
  • Relative air humidity 10 to 90%:  ± 2,0 %
  • Temperature +10 to +60°C:  ± 0,3 °C
Operating Temperature
  • Sensor head -20°C to +60°C
  • Electronics -20°C to +85°C
Power Supply
  • Voltage 5 VDC
  • Electrical connection USB mini-B
  • Current consumption approx. 300 mA
Dimensions and other
  • Dimensions sensor head Ø 12 x 102,5 mm
  • Material sensor head plastic
  • Sensor cap plastic with filter
  • Material electronics housing anodized aluminum
  • Degree of protection electronics housing IP 40

Required Accessories

Part #: HM-14711
$819.69 (USD)
$1,147.57 (CAD)
HumiSenseWare is a database-based software for easy recording and analyzing of measuring data for th (more...)

Optional Accessories

Part #: HM-10006
$201.67 (USD)
$282.34 (CAD)
This specifically designed cup allows for easy calibration of any humimeter device, With a tube sens (more...)

Part #: HM-10352
$136.61 (USD)
$191.25 (CAD)
Certified calibration ampules - set of 5, 50% r.h. are used to calibrate any capacitance type humimeter device.

Part #: HM-10005
$136.61 (USD)
$191.25 (CAD)
Certified Calibration Ampoules Set

Part #: HM-12456
$16.91 (USD)
$23.67 (CAD)
Scigiene's HM-12456 Drip catcher for Temperature Transmitter is an optional accessory that can be pu (more...)

Part #: HM-10403
$143.12 (USD)
$200.37 (CAD)

Part #: HM-12011
$292.75 (USD)
$409.85 (CAD)
Special request - flat rate for air humidity transmitter series per order - irrespective of the quantity ordered.


Part #: HM-13612
$37.73 (USD)
$52.82 (CAD)
Mounting bracket for LF-TD

Part #: HM-10727
$28.62 (USD)
$40.07 (CAD)
Bronze Sinter Sensor Cap
