LF-TD 120 Humidity & Temperature Transmitter to 120°C - Analog Output


  • Part #:HM-12655
  • Dimensions:70 x 32 x 120 mm (electronics housing)
  • Availability: Inquire

Price: $992.16
Price: $1,359.26


Description

The LF-TD 120 is a high accuracy relative humidity and temperature transmitter up to 120°C, ideal for laboratory, climate control and drying technology, wood processing, food and animal feeds, building industry, printing and paper, agriculture, biotechnology and pharmaceutical industry.

Features:

In manufacturing processes, storage and transport, the exact determination of moisture and temperature becomes increasingly important. Only accurate moisture monitoring can guarantee high product quality.

The LF-TD 120 transmitter, with its robust and easy to mount aluminum housing, is best suited for all applications in this field. A robust sensor tube of 500mm length (Ø 12mm) made of stainless steel with screwed sensor cap is an add-on enlarging the application potential. Diverse sensor caps (steel sinter, bronze sinter, plastic with or without filter) are available options.

In the standard version, the moisture and temperature values are output via analogue 4-20mA power output. Alternatively, they can also be used with other interfaces such as: RS232, Profinet, Modbus or USB.

The optional available display showing the current moisture and temperature value is an add-on enlarging the application possibilities of the transmitter.

Two optional relay outputs enable the direct control of an alarm or air conditioning, for example. These switching outputs can be configured freely (switch-points, hysteresis).

Thanks to the enclosed 1.9 meter connection cable with a 5-pole molded and robust sensor connector (on the sensor side), the sensor can be connected to existing plants without any difficulty. The other end of the cable is equipped with wire end ferrules for easy connection to the control box or something similar.

The used capacitive moisture sensor ensures long-time stable and accurate measuring values and is resistant to normal pollution and a lot of chemicals. Furthermore, the sensor used in the LF-TD 120 transmitter is characterized by rapid conditioning.

The measuring accuracy of the LF-TD 120 is guaranteed by an optional factory-calibration at six humidity points.

Specifications:


Measuring Range
  • Relative air humidity 0 to 100 %
  • Temperature -20°C to +120°C
Output
  • Relative air humidity 4 - 20mA
  • Scaling air humidity 0 to 100 %
  • Temperature 4 - 20mA
  • Scaling temperature -20°C to +120°C
  • Working resistance < 500 Ohm (UB 24V)
Accuracy Factory Calibration
  • Relative air humidity 10 to 90%:  ± 2,0 %
  • Temperature +10 to +60°C:  ± 0,3 °C
Operating Temperature
  • Sensor head -20°C to +120°C
  • Electronics -20°C to +85°C
Power Supply
  • Voltage 12 to 24 VDC (12 to 29VDC)
  • Current consumption approx. 18 mA1)
Dimensions and other
  • Dimensions sensor head Ø 12 x 500 mm
  • Material sensor head stainless steel
  • Sensor cap stainless steel sinter
  • Dimensions electronics housing 70 x 32 x 120 mm
  • Material electronics housing anodized aluminum
  • Protection class electronics housing IP 54
  • Electric connection sensor plug

Required Accessories

Part #: HM-14711
$778.17 (USD)
$1,066.09 (CAD)
HumiSenseWare is a database-based software for easy recording and analyzing of measuring data for th (more...)

Optional Accessories

Part #: HM-10006
$191.45 (USD)
$262.29 (CAD)
This specifically designed cup allows for easy calibration of any humimeter device, With a tube sens (more...)

Part #: HM-10352
$129.69 (USD)
$177.68 (CAD)
Certified calibration ampules - set of 5, 50% r.h. are used to calibrate any capacitance type humimeter device.

Part #: HM-10005
$129.69 (USD)
$177.68 (CAD)
Certified Calibration Ampoules Set

Part #: HM-12456
$16.06 (USD)
$22.00 (CAD)
Scigiene's HM-12456 Drip catcher for Temperature Transmitter is an optional accessory that can be pu (more...)

Part #: SC-10403
$130.00 (USD)
$178.10 (CAD)
Certification of Humimeter with Aw sensor

Part #: HM-12011
$277.92 (USD)
$380.75 (CAD)
Special request - flat rate for air humidity transmitter series per order - irrespective of the quantity ordered.

Part #: HM-10249
$43.23 (USD)
$59.23 (CAD)

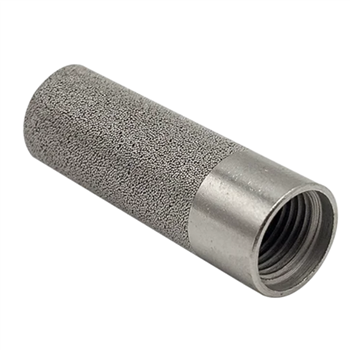

Stainless steel sinter sensor cap for HM-12004
