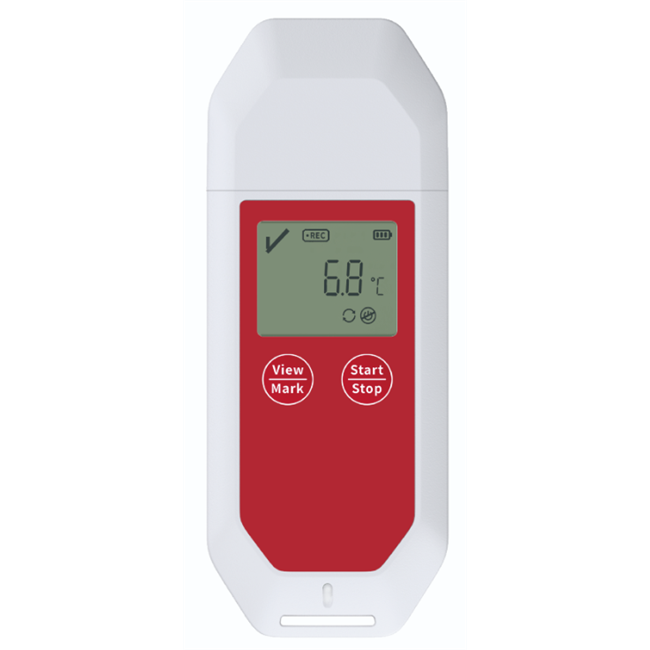

Multi-use Temperature Data Logger


  • Part #:FVZLOG-T
  • Weight:35.6g
  • Dimensions:102.5*40*13.5mm
  • Units:100/cs
  • Availability: Inquire

Price: $1,278.57
Price: $1,853.93


Description

This product is a repetitive, configurable, and replaceable battery temperature and humidity recorder.

The recorder with LCD display, you can view real-time temperature and humidity data, mainly used for monitoring and recording vegetables, fruits, meat and other fresh products in the storage and transportation of temperature and humidity data.

Is widely used in all aspects of warehousing and logistics cold chain, such as refrigerated containers, refrigerated trucks, refrigerated bags, cold storage, etc.



Features:

  • Wide measuring range: -30℃-70℃
  • Configuration method: factory preset parameters
  • High capacity: stores 33,000 data points
  • High precision: built-in high-precision NTC sensor
  • Built-in calibration report
  • Temporary report function
  • All data mode
  • 21 CFR Part 11 compliant software


Specifications:


battery life

Up to 2 years(1 year storage / 1 year useful life)@25℃,5 minutes logging interval

Measurement range

-30 ℃ ~ 70 ℃

Measurement accuracy

± 0.5°C @-10~40°C, ± 0.8°C @-30 ~-10°C & 40~70°C

Resolution

0.1°C

recording interval

1 minute -24 hours (can be factory configuration) default 10 minutes

alarm point

Up to 6 individually programmable alarm limits

Storage capacity

Up to 33,000 points @ Single PDF/CSV report,25,000 Points @PDF&CSV report

Startup delay

0 minutes -24 hours (can be configured before factory) default 15 minutes)

Start Mode

Manual Start/automatic start

Report Format

PDF/CSV/PDF & CSV (optional, factory configured)

Protection level

IP65

Battery Type

3.0V CR2450

Connection Mode

USB2.0

Product Size

102.5*40*13.5mm

Product Weight

35.6g

Product Certification

CE,EN12830:2018,RoHS
