TecnoStick Probe -80 Temperature Datalogger


  • Part #:See Below
  • Weight:14 g
  • Dimensions:54 X 32 X 11 (mm)
  • Availability: Inquire

Price: $303.80
Price: $425.32


Description

TecnoStick Probe -80 temperature data logger is a miniaturized temperature recorder with cable and rigid metal probe of various lengths, calibrated from -80°C up to 20°C; it has a wide range of monitoring applications especially in the food and pharmaceutical industry, for continuous monitoring in ultra freezers. Its reduced size and no need of external power supply make the TecnoStick system extremely versatile. The data logger is supplied with a calibration certificate and the battery is user replaceable.


Main Features

  • Mission programming and reading using a PC through the TecnoStick Interface
  • Reduced size for easy use for every need
  • Quick response time
  • Stand-by function: start the logger and then, using the metallic clip, set it to a stand by status. In this way you can send many pre-programmed loggers to the sender of the products without providing the software and interface. Before sending the goods just remove the clip to start the acquisitions

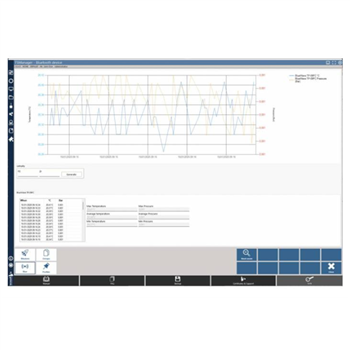

  • Works with StickLog Pro and TS Manager software
  • High accuracy and precision
  • Product's core temperature controlled directly
  • Compliant with HACCP and EN12830 regulations
  • MKT formula implemented, for quick data analysis
  • NIST Traceable Calibration Certificate included
  • Long life battery
  • User replaceable battery



Applications

  • Laboratories
  • Food & Beverages
  • Industrial
  • Pharmaceutical
  • Medical
  • Healthcare


Technical Specifications



Dimensions

54 X 32 X 11 (mm)

Probe Dimensions

Cable 500 l X 2 Ø (mm) or longer - Probe 30 or 80 l X 4 Ø (mm) pointed or rounded

Weight

14 g

Temperature range

-30°C ÷ +60°C

Sensor Temperature Range

-80°C ÷ +20°C

Standard calibration points (temperature)

-80/-40/0/20°C

Extra calibration points (temperature)

Within standard calibration range

Temperature resolution

0.03°C

Temperature accuracy

± 0.25 °C (within the calibration range) / ± 0.5 °C (within the range -80 °C ÷ -40 °C)

Memory (n. of acquisitions)

2.730

Acquisition step

From 1 every minute to 1 every 255 minutes

Battery type

3.0V CR2032 lithium, user replaceable (2017 IATA DGR: PI970 Section II, < 4 cells)

Battery life

Up to 10 years or 3 millions of acquisitions

Protection degree

IP63

Software & Mobile App

StickLog Pro, TS Manager
























Ordering Instructions:



Part Number

Description

TS01TSP-80TF03

TecnoStick with Probe, 3 cm length x 4 mm diameter, rounded tip

TS01TSP-80TF04

TecnoStick with Probe, 8 cm length x 4 mm diameter, rounded tip

TS01TSP-80TF05

TecnoStick with Probe, 3 cm length x 4 mm diameter, pointed tip

TS01TSP-80TF06

TecnoStick with Probe, 8 cm length x 4 mm diameter, pointed tip

TS01TSPC

TecnoStick Probe Calibration Certificate

TS0165

TecnoStick TS Manager Software for 21 CFR Compliance

TS04IUSB

TecnoStick Interface

TS04TSCL-1

TecnoStick metal clip for stand by function



Optional Accessories

Part #: TS0165
$1,512.00 (USD)
$2,116.80 (CAD)
SterilDisk, S-Micro, S-Radio, MicroW, RHTemp, PressureDisk, Pirani Vacuum Logger, TecnoStick, HumiSt (more...)

Part #: TS04IUSB
$75.60 (USD)
$105.84 (CAD)
The TecnoStick Interface is the device used to read and program the following data loggers: TecnoSti (more...)

Part #: TS01TSPC
$29.06 (USD)
$40.68 (CAD)
TecnoStick Probe Calibration Certificate

Part #: TS04TSCL-1
$1.90 (USD)
$2.66 (CAD)
The TecnoStick data logger (all versions) can be put in a stand by status after being programmed for (more...)
