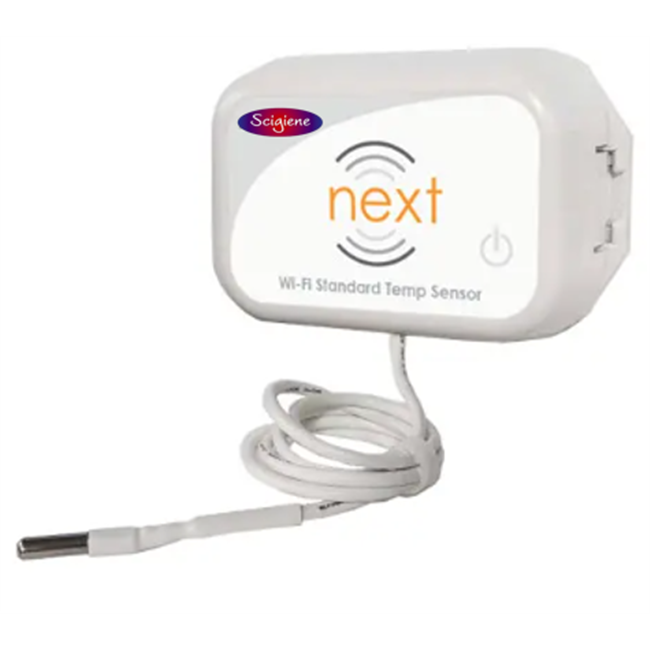

The Next Wi-Fi Sensors provide remote monitoring for many use cases
and conditions in nearly any industry application, such as food services,
manufacturing, facility management, agriculture, petrochemical, logistics,
pharmaceutical, and health care. They have a wireless range of up to 125 feet
through five walls or a 500-ft. line of sight.
Features:
- Measurement Range:
- Leaded: -40°C to 100°C (-40°F to 212°F)
- Non-leaded: Limited to the operational range of
the sensor body (enclosure and body)
- Resolution: 0.1°C(0.18°F)
- Accuracy: ± 1°C (± 1.8°F)
- Calibrated Accuracy: ± 0.5°C (± 0.9°F)
- Configurable thresholds for critical condition
monitoring
- Cable Length: 3ft
- Response Time: 50 Seconds (10-second time
constant)
- Wireless Range: 125 ft through five walls or a
500-ft line of sight1
- Power/Utility Button: Powers device on/off,
triggers data transmission, changes operating mode, etc.3
- LED Indicator: Indicates status and activity3
- Over-the-air updates (future-proof)
- Data logs up to 4096 readings if the Wi-Fi
connection is lost (non-volatile flash, persists through the power cycle):
- 10-minute Heartbeats = ~ 22 days
- 2-hour Heartbeats = ~ 266 days
- Typical Battery Life:
- 10-minute Heartbeats = ~ 2 years2
- 2-hour Heartbeats = ~ 5 years2
- Free iMonnit Basic Online Wireless Sensor
Monitoring and Notification System to configure sensors, view data, and set
alerts to be sent via text and email
- Power: Two replaceable 1.5 V AA batteries
(included)
- Communications: 802.11b/g/n (2.412-2.484 GHz)
- Wi-Fi Security: OPEN, WPA, WPA2, WPA3- Wi-Fi
Setup: Bluetooth® via an app.
- Actual range may vary depending on the
environment.
- Battery life is determined by the sensor
reporting frequency and other variables. Other power options are also
available.
- For a full description of Button/LED
behaviors see the Next Sensor General Information Guide, Section VI.
Example
Applications
- Ambient temperature monitoring
- Environmental monitoring
- Smart machines and facilities
- HVAC operation and testing
- Data center monitoring
