EDL-Beacon Temperature Bluetooth Datalogger


  • Part #:MA0264
  • Weight:0.95 oz
  • Dimensions:2.61" x 2.24" x 0.26"
  • Availability: Inquire

Price: $80.00
Price: $108.00


Description

EDL-Beacon is a high-quality, compact, waterproof Bluetooth Temperature Datalogger  with an incredible 300M range, that communicates wirelessly via Bluetooth Low Energy to mobile devices. It can double as a wireless device due to its incredible 300m B.T. range.

By connecting to a B.T. wireless network, it can upload temperature data and be emailed anywhere in the world. Monitor refrigerators and warehouse conditions from 300 meters away using our free App on your smartphone. The EDL-Beacon is an easy-to-use IoT Edge device that can be used for tracking temperatures of blood specimens, biologics and/or stationary needs. Perfect for HACCP for Food and shipping applications. Your drivers can monitor refrigerated loads live with ease.

Features:

  • Portable, convenient and very easy to operate.
  • Data can easily be retrieved instantly.
  • Reusable once data is completely cleared by BLE APP.
  • Free App is available from Google Play store and Apple
  • Upper and lower temperature alarm limits can be set.
  • Graphs instantly produced and saved.
  • Easy to operate by pressing the Start/ Stop button.
  • Clear all data and reprogram the basic parameter settings by Smartphone.
  • The dataloggers are NIST-Traceable and come with Certificates of Conformance.

Specifications:

Data Storage Capacity:
Up to 50K data points, 180 days
Recording Interval:
Customizable
Temperature Range:
-20°C to +60°C (-4°F to +140°F)
Temperature Sensor Accuracy:

±0.5°C (0°C to +65°C) / ±0.9°F (32°F to +149°F)

±1.0°C (-40°C to +125°C) / ±1.8°F (-40°F to +257°F)

Shelf Life / Battery:
3-5 years / 3.0V Li-MnO2
Wireless Technology:
Bluetooth 5.0 for long range
Waterproof Level:
IP67
Dimensions:
66.5mm x 56mm x 6.7mm / 2.61” x 2.24” x .26”
Weight:
27g / .95 oz.

Additional Information

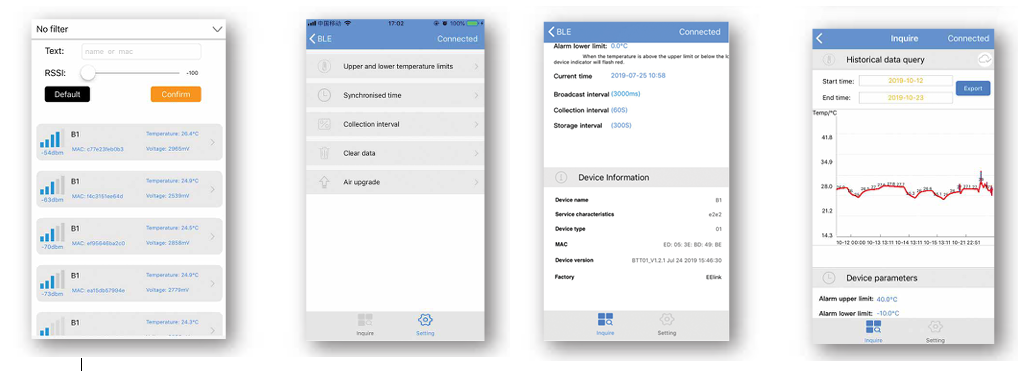

BLE APP

Using the free APP will enable you to scan the broadcast information of unit including temperature, voltage, Mac address, and signal strength. You can search for the device by signal strength, device name, or mac address.

Customizable Parameters

  • Upper & lower temperature limits
  • Synchronized time
  • Collection interval
  • Clear data
  • Temperature units
  • Air upgrade

Reports

  • Export historical data: export data will be sent or stored in csv or pdf format. The file is named with exporting time.
  • Android system data storage: file management/BleExcel/(device address)/export time.csv/time.pdf
  • Export data table. Data format: date time + temperature
